Engenext Boundary Capture

Your tool to extract boundaries of 2D sketches

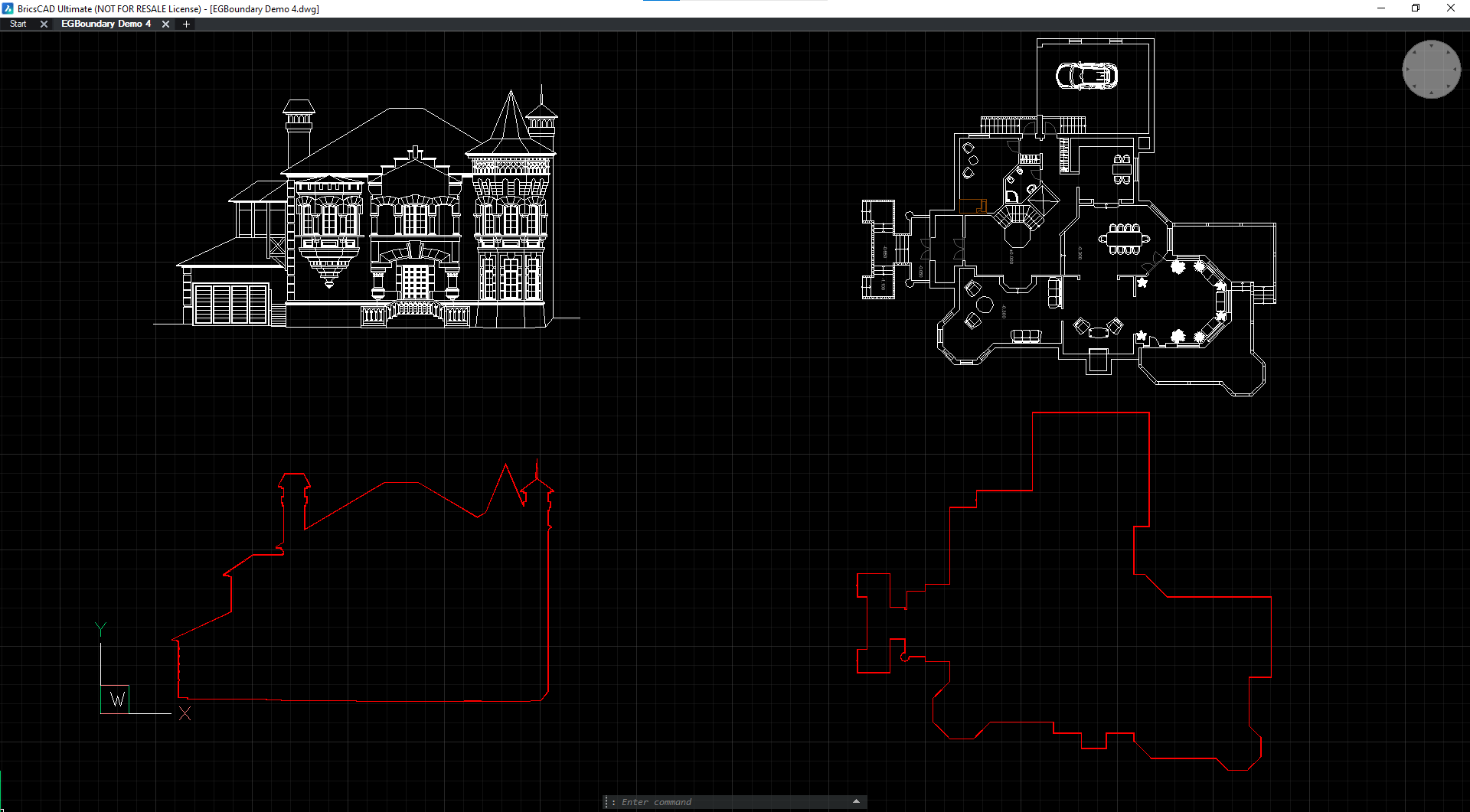

How much area does your mansion actually occupy?

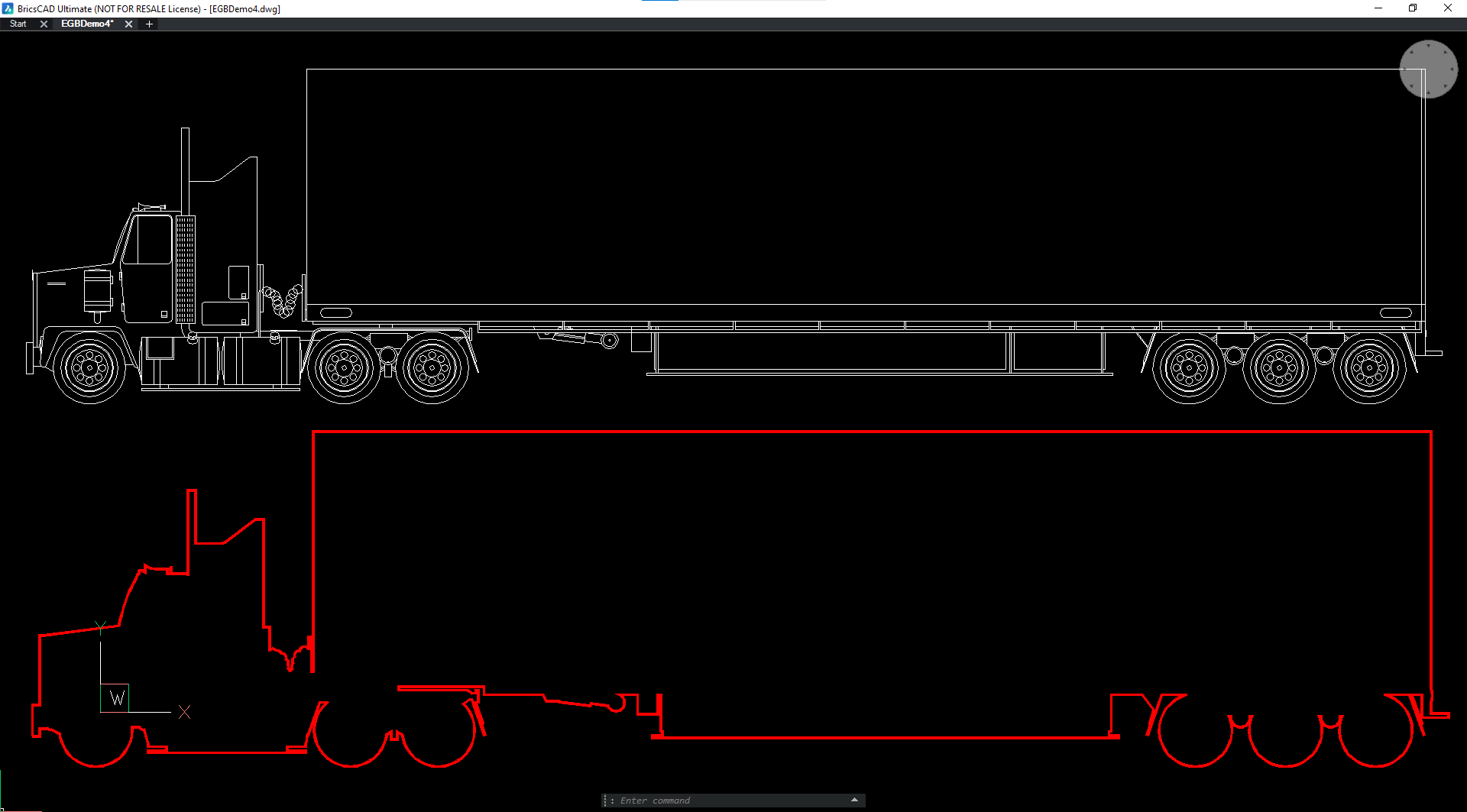

How much area is subjected to Side wind load?

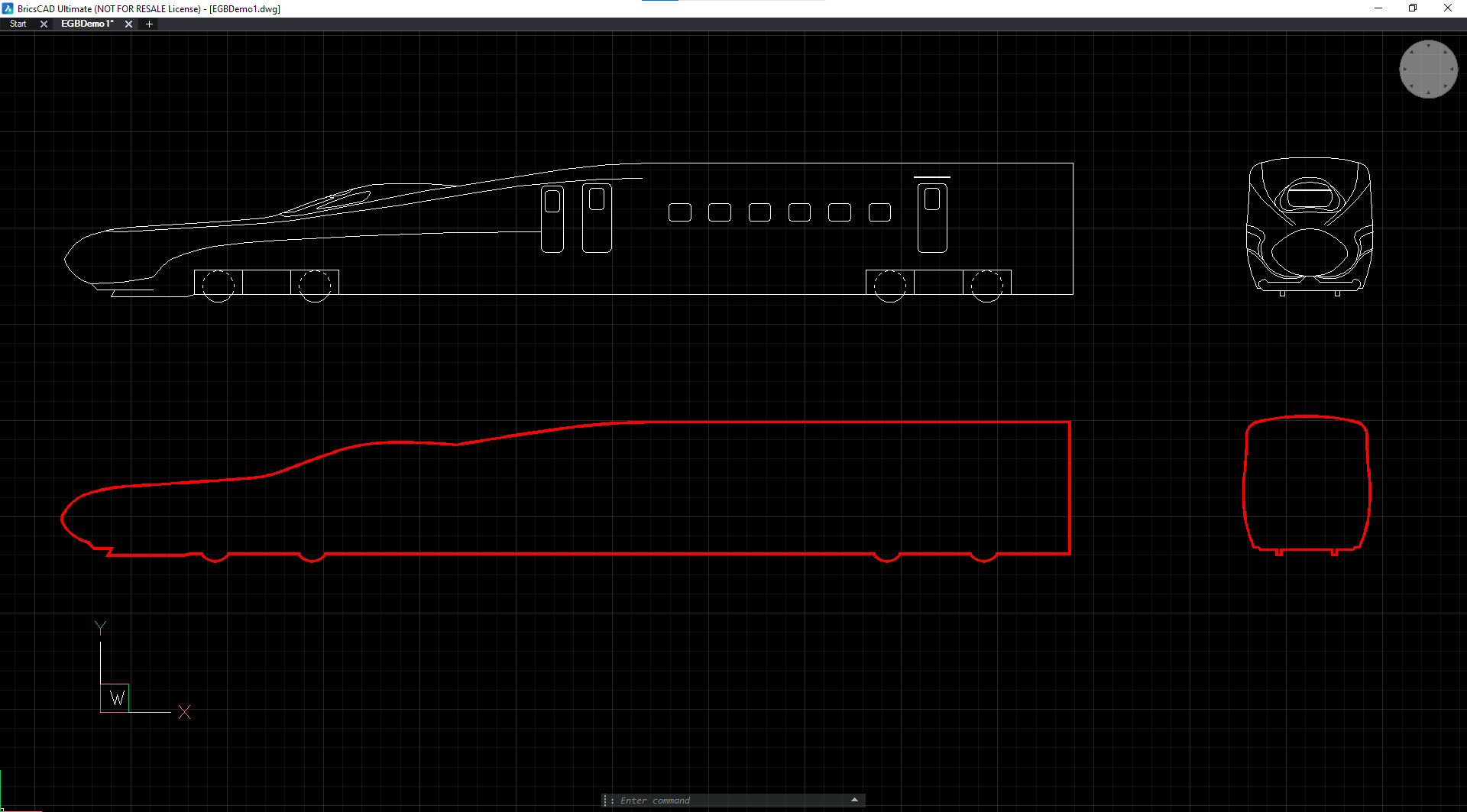

How much area is subjected skin /front drag?

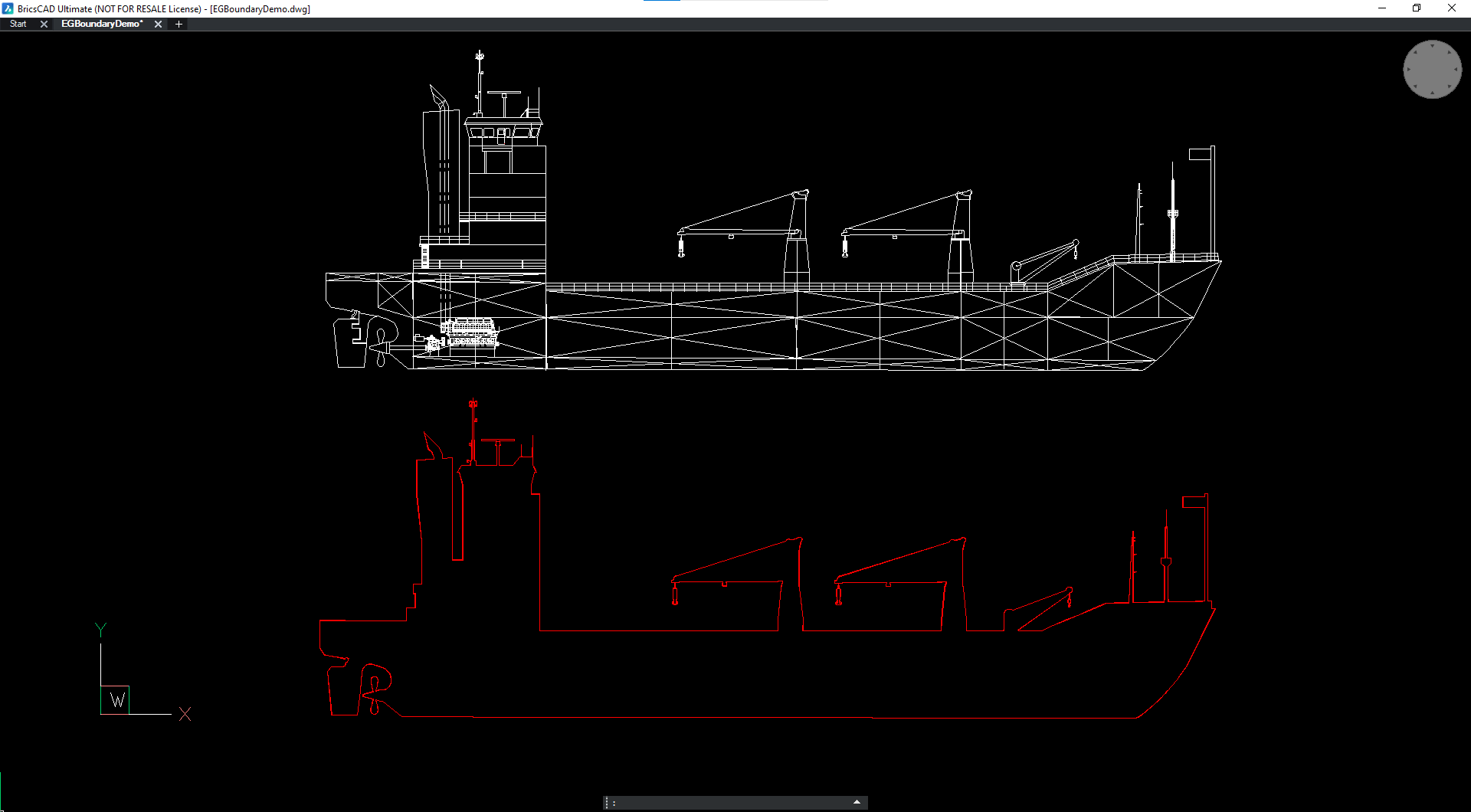

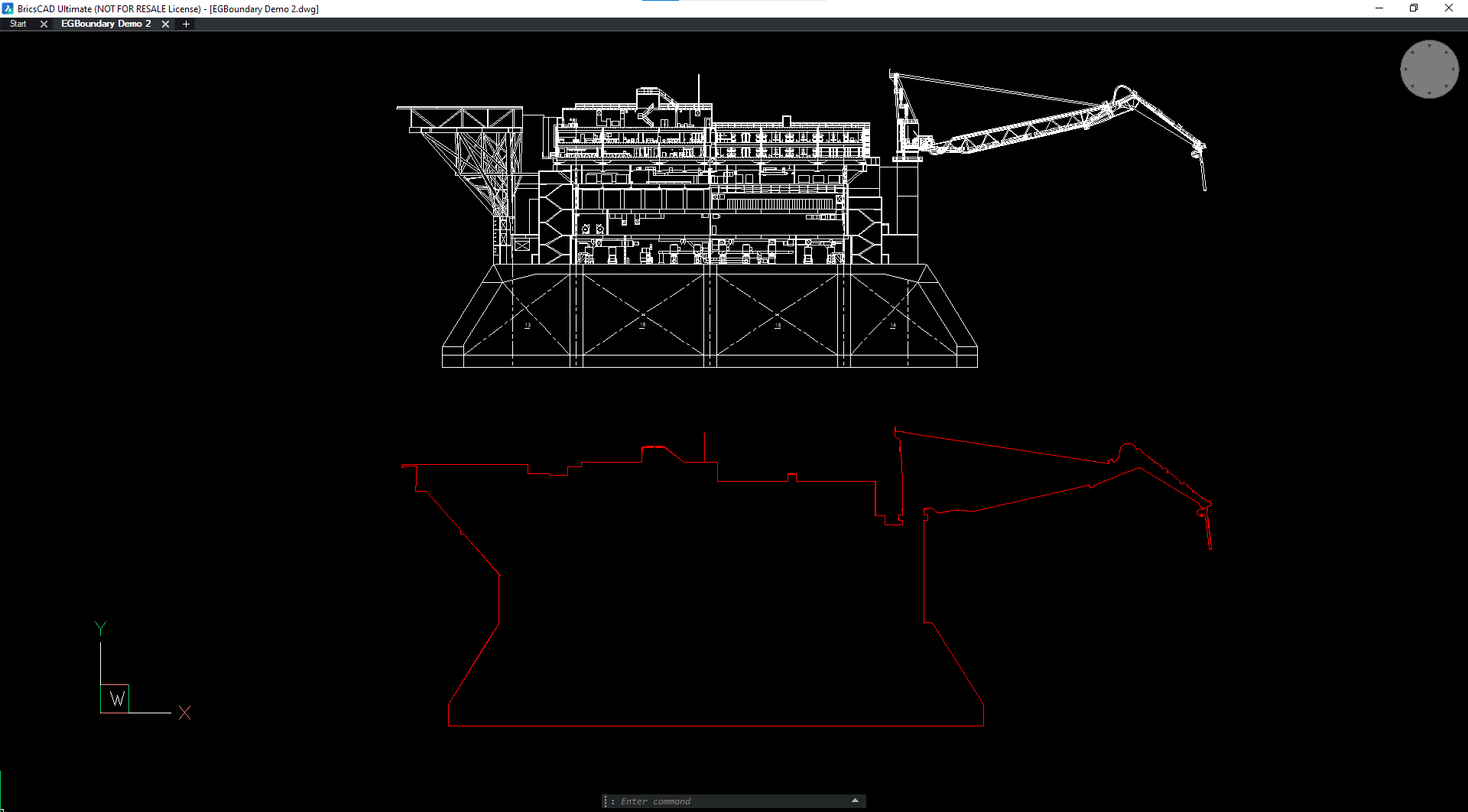

Suports 2D drawings from any domain

Suports 2D drawings from any domain

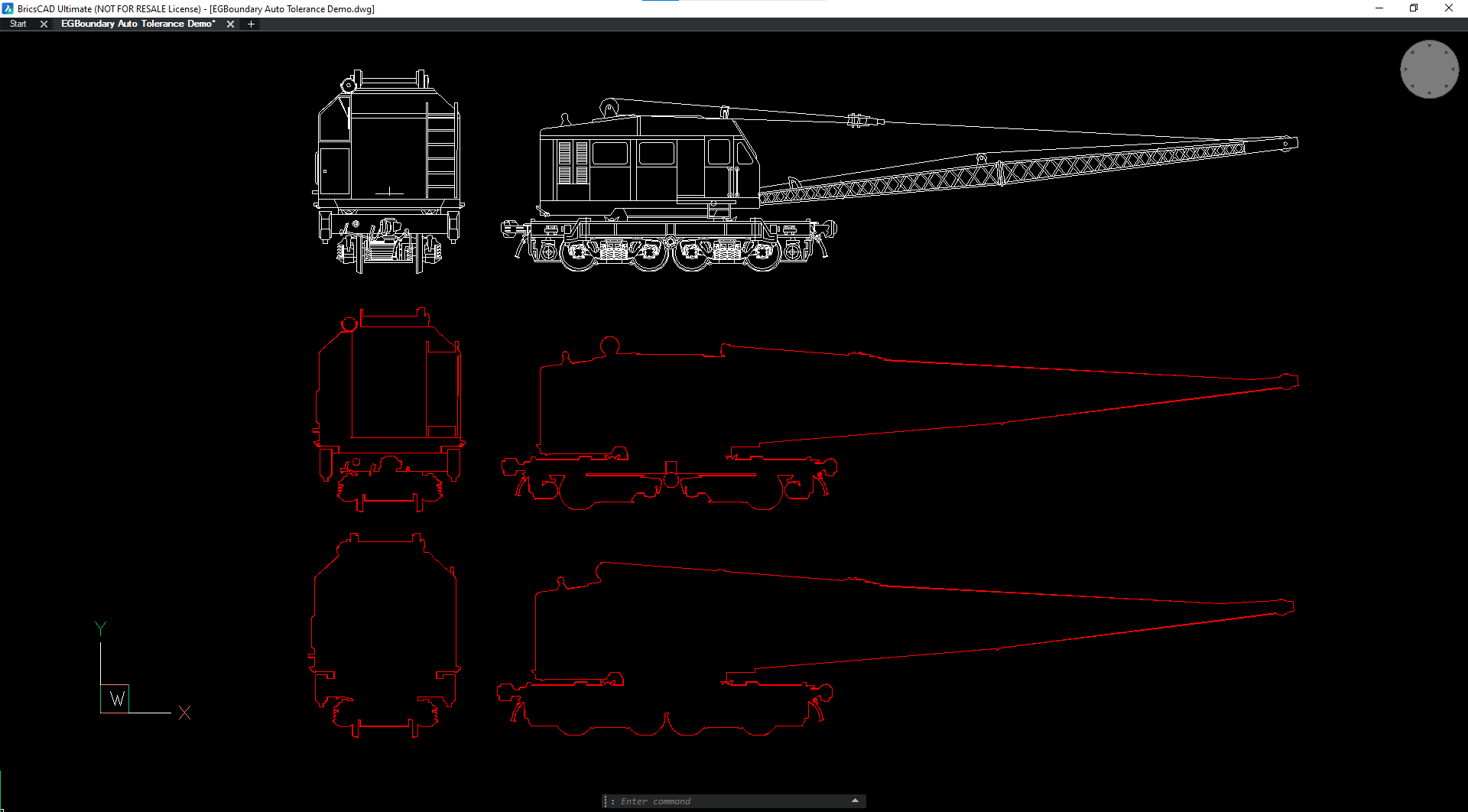

Autotolerance can extract better results

ENGENEXT Boundary Capture

Features

  • Extract boundary on a single window selection
  • Single command, Lisp integrable
  • Auto Tolerance
  • Windows 10, 11
  • Select Line Type and Layers New!
  • Enable Wipe-out New!

Licensing and Pricing

Prices for single license

All prices in USD

Subscription period is 1 Year

Perpetual Subscription
Node-locked 119.00 59.00
Floating 238.00 119.00

Need More?

Write to us at contact@engenext.com, engenextsolutions@gmail.com For More Information, Customization, Quote
